Color
-
ECP‐2515NET/CWD1N
Grey -
ECP‐2515NET/CWD2N
Beige
CALMWOOD
Spec
Porous ceramics / Glazed
Field material ECP‐2515NET/CWD1N~CWD2N
| Size/pc | 150.5x24.25mm |
|---|---|
| Size/sht (Actual) | 302x302mm |
| Size/sht (Nominal) | 303x303mm |
| Thickness | 6.5mm, 8.5mm Mix |
| Joint | 1mm Open joint |
| Quantity/sqm | 11.3shts |
| Quantity/ctn | 11shts |
| Weight/ctn | 12kg |
-

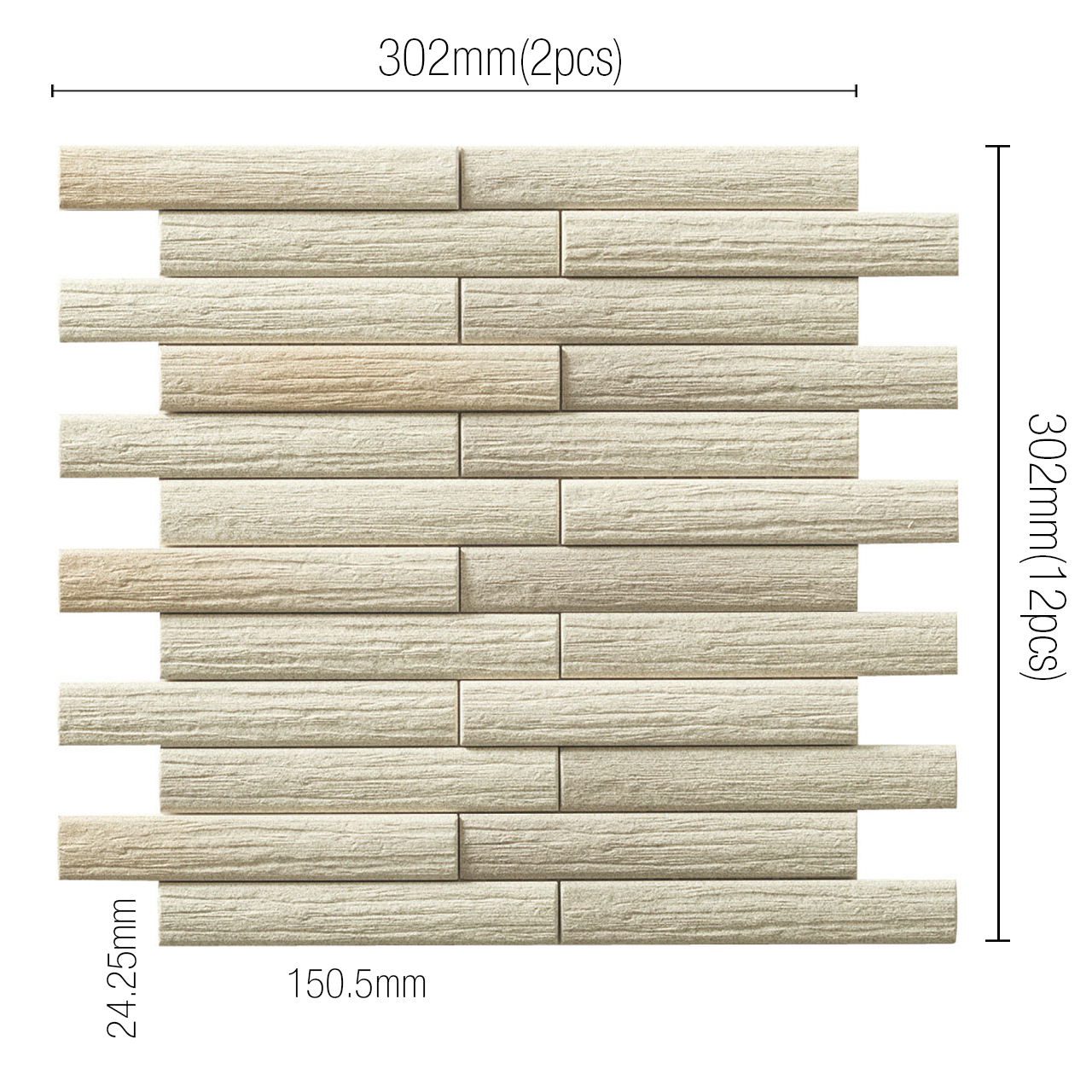

Dimension of sheet
Corner material ECP-2515N/90‐14/CWD1N~CWD2N
| Size/pc | (34.0+71.8)x24.25mm |
|---|---|
| Size/sht (Actual) | (34.0+71.8)x302mm |
| Size/sht (Nominal) | (35.0+72.8)x303mm |
| Thickness | 6.5mm |
| Joint | 1mm Open joint |
| Quantity/m | 3.4shts |
| Quantity/ctn | 4shts |
| Weight/ctn | 1.7kg |
Starter material ECP‐2515N1/CWD1N~CWD2N
| Size/pc | 36.85x24.25mm 150.5x24.25mm |
|---|---|
| Size/sht (Actual) | 188.35x302mm |
| Size/sht (Nominal) | 189.35x303mm |
| Thickness | 6.5mm |
| Joint | 1mm |
| Quantity/m | 3.4shts |
| Quantity/ctn | 4shts |
| Weight/ctn | 2.5kg |
Installation Tools:
Square notch trowel 3mm
Note:
Has color variation.
This series has a nonglazed body(sides and back). May differ from the color of the surface.
Apply with 1.0mm±0.8mm joint.
Calculation
You can calculate necessary cartons per area. Please input square meters or square feet, then you can get approximate number of cartons.
✽ For series with multiple shapes, please select model number before input area.
=0ctn
